POS-3000 Windows POS



Complete POS Bundle

AZT POS-3000 Bundle is a complete, reliable hardware solution for point of sale needs. It features the desktop POS-3000 15” touchscreen Windows system, one of the most versatile POS systems with a built-in MSR. The system is sleek and stylish with a piano-gloss finish, and has a small footprint. The bundle also includes the high-speed, noise-free PRP-300 receipt printer for efficient and fast printing needs, as well as the PCD-428 cash drawer that has both bill and coin adjustable compartments. The PRP-300 receipt printer prints at a speed of 250mm/sec and has a sleek, refreshing look as a thermal receipt printer. The PCD-428 cash drawer is durable and has maximum security, with a media slot for large checks and bills.



Included

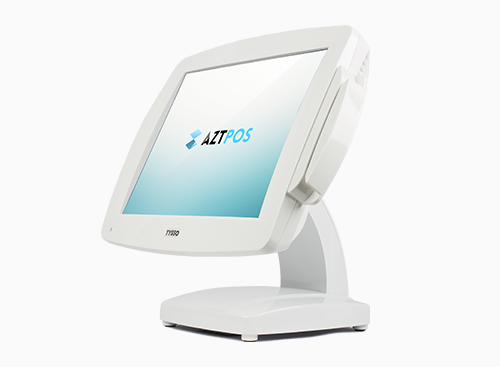

 15” Desktop touchscreen POS-3000
 High-speed thermal receipt printer PRP-300
 Durable cash drawer PCD-428


Specifications

TYSSO-POS-3000 15" Desktop POS

OS Support :  POS Ready 2009, POS Ready 7, XP Pro, Vista, Linux, Windows 7
CPU : Intel Atom D525 Dual core (1.8GHz, 1MB Cache)
Memory:  2 x 204pin DDRIII, SODIMM Socket, up to 2GB
HDD : 1 x 2.5” SATA 320GB Compact Flash 1 x Slot Type I, II, Non-removable
Display : TFT LCD, 250 nits, 1024 x 768 pixels Touch Flat 5 Wire Resistive Type
Display Angle : 15deg – 80deg (up to 90deg)
Interface :  COM with Power Selected 5/12V x2, COM without Power Output x1, DB25 Parallel Port x1, USB 2.0 External x6, USB 2.0 Internal (1 reserved for touch screen) x2, PS/2Mouse x1, PS/2 Keyboard x1, DB-15 VGA Port x1, 12 VDC In x1, 12 VDC Out x1, RJ-45 Giga LAN Support x1, RJ-11 x1, Audio Line Out x1, Mic In x1, Internal Speaker 2W x2
Dimensions : 15.1 x 14.2 x 9.6 (W x D x H, in.) Weight 16.1 lbs
Compliance : FCC/CE/WEEE/RoHS Power 12VDC 90W, 4-pin connector with lock, external adaptor 100-240 VAC, 50/60Hz
Color : Black


TYSSO-PRP-300 High Speed Thermal Receipt Printer

Paper Width : 80mm (3”)
Speed : 250mm/sec Interface Serial, Ethernet, USB
Resolution : 576 dots/line or 512 dots/line Reliability Head life=100km
Cutter : Auto-cutter (partial) Operating Temperature Range 41-115F (with over-heat halt-on protection)
Dimensions : 6.8 x 5.7 x 4.9 (L x W x H, in.) Weight 3.2 lbs
Color : Black, White


TYSSO-PCD-428 Steel Cash Drawer

Casing
: Industrial steel construction
Compartments : Adjustable 4 or 5 Bill/8 coin slots
Drawer :  Metal drawer, glide open, electronic open and manual lock/unlock
Bill Tray : Adjustable 4 or 5 Bill compartments, Metal bill clips Coin Tray Adjustable 8 coin tray
Media Slot : Front access slip slot for large bills and checks
Lock : 3-position key-lock
I/O Interfaces : RS232 or RJ11/12 printer interfaces Durability 1,000,000 operating cycles
Dimensions : 16.1 x 16.6 x 3.9 (W x D x H, in.) Weight 18.3 lbs
Color : Black
