POP-950 Windows POS



All-in-One Windows POS System

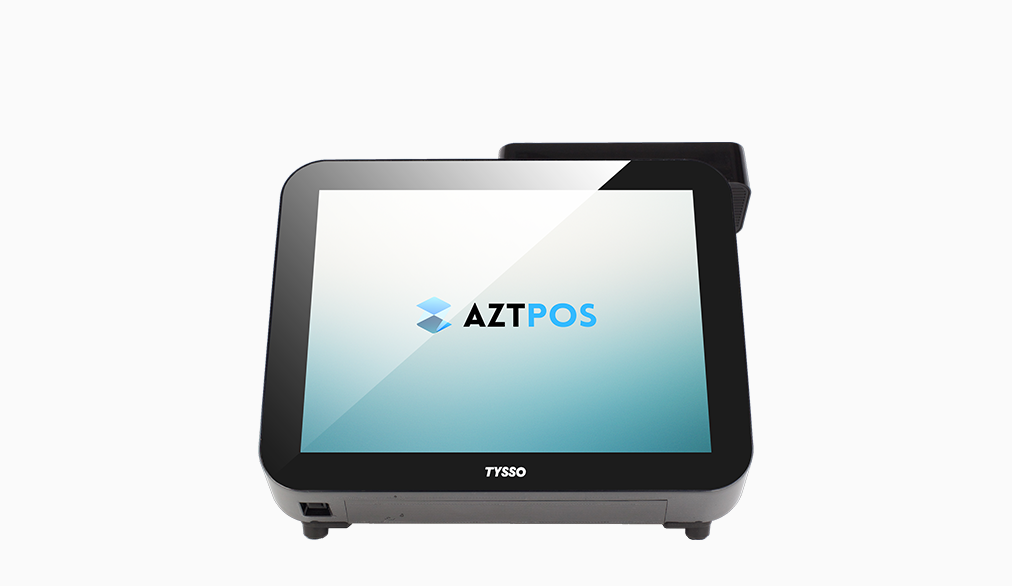

TYSSO’s POP-950 is an elegant, attractive all-in-one POS system. It features a TRU-FLAT, bezel-free,
splash-proof resistive 15” touch screen, framed by piano-gloss finish in black, white, or a striking orange. Being an all-in-one, it features a 3” high-speed thermal printer, a magnetic swipe credit card reader, and a customer pole display, or a secondary LCD display. The POP-950 also has multiple interface ports, providing flexibility for POS peripheral needs. Running on a Windows operating system, it is compatible with many different POS software. This extremely attractive design will serve well for any retail or restaurant environment looking for a stylish, sleek look to add to their space while providing POS solutions.



Included

 - All-in-One touchscreen POS system
- Built-in credit card reader
- Built-in thermal receipt printer
- Customer display
- I-button optional
- Various color options


Specifications

POP 950 WIN

CPU : Intel Atom D525 Dual Core (1.8GHz, 1MB Cache)
RAM : 2 x 204pin DDR3, SODIMM Socket, up to 4GB HDD Storage 1 x 2.5” SATA 320GB
OS Support : POS Ready 2009, POS Ready 7, Windows XP Pro, Vista, Windows 7, Linux Compact Flash 1 x Slot Type I II, Non-removable
Display : TFT LCD, 250 nits, 1024 x 768 px
Touchscreen : Flat 5 Wire Resistive Type
Tilting Angle : Fixed, 50 degrees
Interface : 2 x COM with Power Selected 5/12V, 1 x COM without Power Output, 1 x DB25 Parallel Port, 6 x USB 2.0 (External), 2 x USB 2.0 (Internal, one reserved for touchscreen), 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 1 x DB-15 VGA Port, 1 x 12VDC In, 1 x 12VDC Out, 1 x RJ-45 Giga LAN, 1 x RJ-11, 12/24 VDC Selectable, 1 x Audio Line Out, 1 x MIC In, 2 x Internal Speaker 2W, 1 x Mini PCI e (Internal)
Printer : 80mm (3”) built-in printer, 250mm/sec high speed thermal printer Printer
Interface : ulti I/O Interface (Serial+Ethernet+USB+RJ11 for Cash Drawer)
Customer Display : Vacuum Fluorescent Display (Brightness: 700cd/m2, 20 x 2)
Secondary : LCD Display 8.4”, 10.4”, 12.1”, 15” with or without Touch
MSR : 3 Track, PS/2 or USB or COM
I-Button (optional) : Dallas Key RS232 I/F
Wi-Fi : Optional (Mini PCIe Module) Dimensions 14.6 x 12.6 x 11.8 (W x D x H, in.)
Weight : 18.7 lbs
Colors : Black, white, and orange
