P1088 All-In-One Windows POS



All-in-One Windows POS System

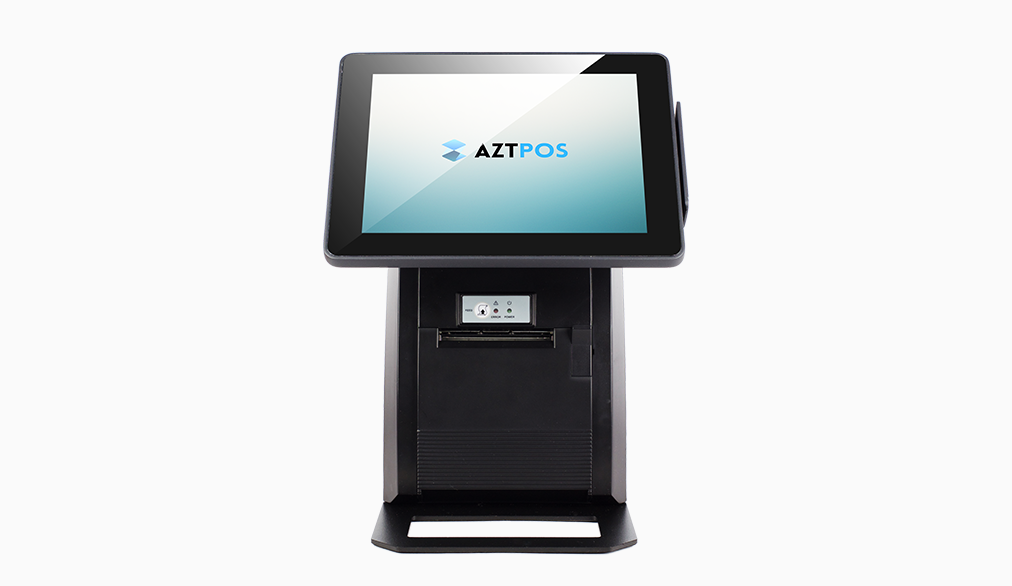

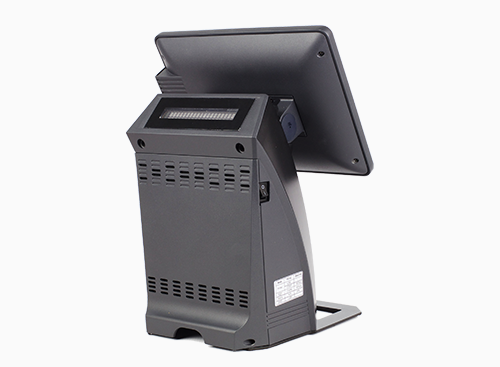

AZT presents its most compact all-in-one POS solution to date, the POP-1088 series. These systems combine ultra-small footprint, sleek look, ease of use, and highly integrated features into one simple and elegant solution. The POP-P1088 is our Windows solution, featuring a tiltable projective capacitive touch screen, a built-in 3” printer with auto-cutter, a built-in magnetic credit card reader, and a customer display opposite the touch screen. These all-in-one systems are extremely small, measuring only 9.8 inches by 7.8 inches, creating space and organization in retail and restaurant environments. The familiarity and compatibility of a Windows system makes the AZT-POP-P1088 an attractive option for POS solutions.



Included

- All-in-One Windows POS system
- Built in printer, MSR, and customer display
- Extremely compact
- Multiple external interfaces


Specifications

AZT POP 1088

CPU : Intel Atom D2550 1.86GHz Dual Core Processor
OS Support Windows 7 POS Ready
HDD : SSD 4GB
RAM : DDRIII 2GB
 Optional External Storage: 32GB SD Card
Wi-Fi : Optional 802.11 b/g/n Wi-Fi Module
Language : English/Chinese/Russian/French/German/Italian/Spanish
Operator Display : 9.7” diagonal, LED backlight, 1024x768, LVDS
Touchscreen : 9.7” Projective Capacitive touch, IPS Panel (upgradable TN Panel),tiltable
Customer Display : LED or VFD or LCD (three choose one)
Printer : 80mm (3”) thermal printer, automatic cutter, 170mm/sec,
Card reader (optional) : USB DC 5V±5% 65mA (max)
External Interface : USB x 4, TF x 1, LAN x 1, DC24V Input x 1, cash drawer x 1, RS232 x 1
Power supply : DC24V 3.8A
Operating conditions : -10C~40C, 20~80% RH
Dimensions : 9.8 x 7.8 x 12.7 (L x W x H, in.) Weight 10.2 lbs
